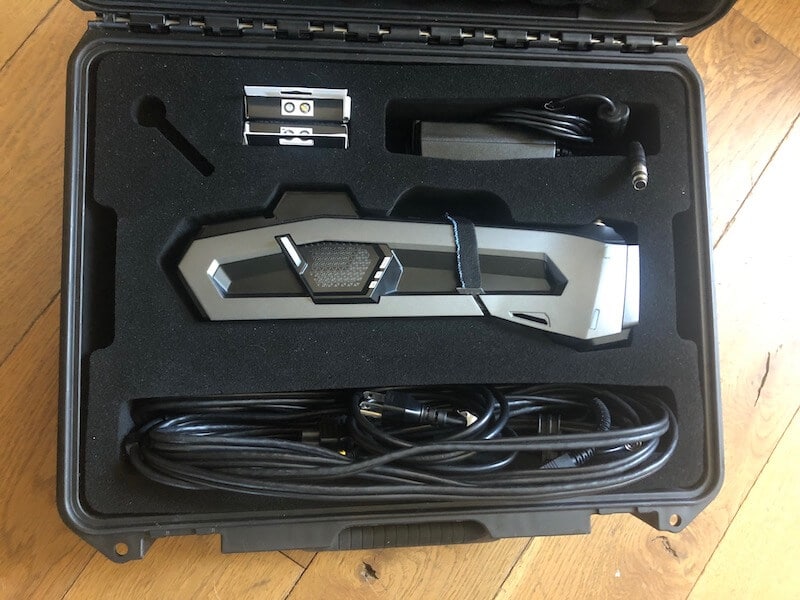

Creaform GoSCAN SPARK Portable 3D Scanner
$13,200.00$16,500.00 (-20%)
Sell New Creaform GoSCAN SPARK Portable 3D Scanner with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
Creaform GoSCAN SPARK Portable 3D Scanner
| Go!SCAN SPARK™ | |
|---|---|
| Accuracy(1) | Up to 0.050 mm (0.0020 in) |
| Volumetric accuracy(2) (based on part size) |
0.050 mm + 0.150 mm/m (0.0020 in + 0.0018 in/ft) |
| Volumetric accuracy with MaxSHOT Next™ | Elite(3) | 0.050 mm + 0.015 mm/m (0.0020 in + 0.00018 in/ft) |
| Measurement resolution | 0.100 mm (0.0039 in) |
| Mesh resolution | 0.200 mm (0.0078 in) |
| Measurement rate | 1,500,000 measurements/s |
| Light source | White light (99 stripes) |
| Positioning methods | Geometry and/or color and/or targets |
| Scanning area | 390 x 390 mm (15.4 x 15.4 in) |
| Stand-off distance | 400 mm (15.7 in) |
| Depth of field | 450 mm (17.7 in) |
| Part size range (recommended) | 0.1–4 m (0.3–13 ft) |
| Texture resolution | 50 to 200 DPI |
| Texture colors | 24 bits |
| Software | VXelements |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf |
| Compatible software (4) |
3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
|
| Weight | 1.25 kg (2.7 lb) |
| Dimensions (LxWxH) |
89 x 114 x 346 mm (3.5 x 4.5 x 13.6 in) |
| Connection standard | 1 X USB 3.0 |
| Operating temperature range | 5-40 °C (41-104 °F) |
| Operating humidity range (non-condensing) |
10-90% |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE |
