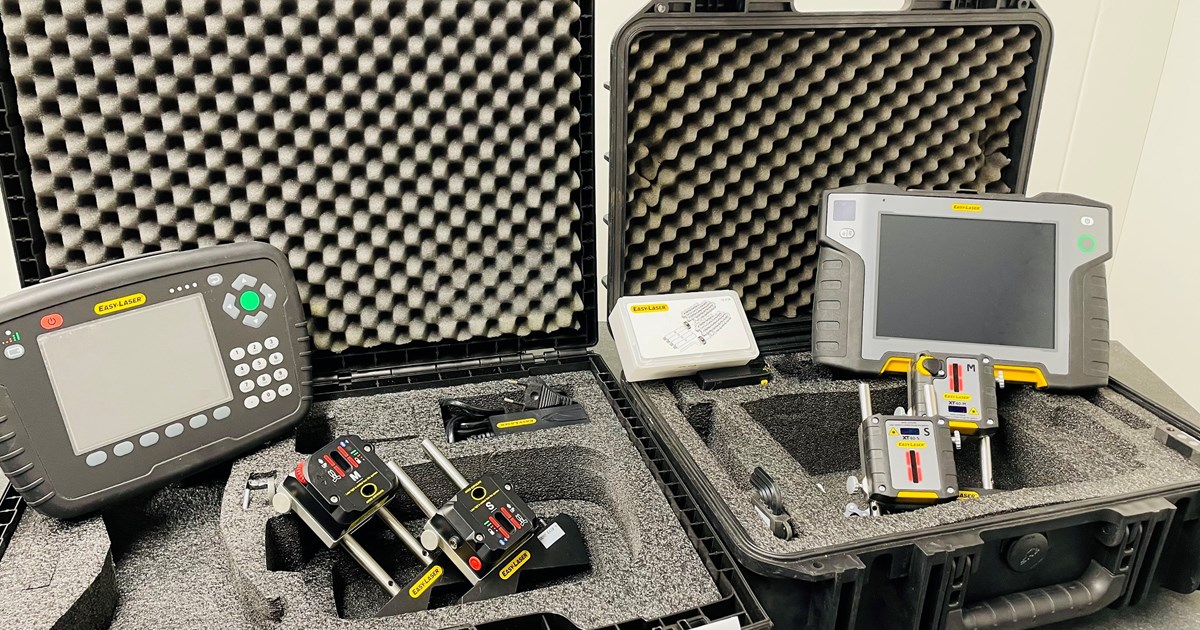

Easy Laser E420 Shaft Alignment System

The Easy-Laser E420 is an entry level laser systems for shaft alignment. Wireless measuring units, a large 5.7” colour display and an IP65-rated design that withstands harsh environments. These are the features you would normally only find in more expensive systems.The measurement system is very easy to use. Pre-mounted units make it easy to install on the machine and the programs guide you step-by-step through the process. Start with the measuring units positioned anywhere on the shaft, recording three readings with as little as 20° of rotation between readings. Then adjust the machine with the live values, and save the measurements in the display unit memory. You can also transfer the results to the database EasyLink ™ program (included) for PC. Easy-Laser® E420 has everything an entry level system should have, and more.

Technical Data

System

Relative humidity 10–95%

Weight (complete system) 6.3 kg [13.9 lbs]

Carrying case WxHxD: 500x415x170 mm [19.7×16.3×6.7″]

Measuring units ELM20 / ELS20

Type of detector TruePSD 20 mm [0.78″]

Communication BT Wireless technology

Operating time >4 h

Resolution 0.01 mm [0.5 mils]

Measurement accuracy ± 5 μm ± 1%

Measurement range Up to 3 m [10 feet]

Type of laser Diode laser

Laser wavelength 630–680 nm

Laser class Safety class 2

Laser output <1 mW

Electronic inclinometer 0.1° resolution

Thermal sensors -20–60 °C

Environmental protection IP class 65

Operating temperature -10–50 °C

Housing material Anodized aluminium / ABS plastics

Dimensions WxHxD: 69.0×61.5×41.5 mm [2.72×2.42×1.63″]

Weight 176 g [6.2 oz]

Display unit

Type of display/size VGA 5.7″ colour screen, backlit LED

Displayed resolution 0.01 mm / 0.5 thou

Internal battery (fixed) Heavy duty Li Ion chargeable

Operating time Approx. 30 hours (at typical user cycle)

Operating temperature -10–50 °C

Connections USB A, Charger

Communication BT Wireless technology

Internal memory >2000 measurements can be saved

Help functions Calculator, Unit converter

Environmental protection IP class 65

Housing material PC/ABS + TPE

Dimensions WxHxD: 250x175x63 mm [9.8×6.9×2.5″]

Weight 910 g [2.0 lbs]

Cable

Charging cable (splitter cable) Length 1 m [39.4″]

Brackets etc.

Shaft brackets Type: V-fixture for chain, width 18 mm [0.7″].

Shaft diameters: 20–450 mm [0.8″–17.7″]

Material: anodised aluminium

Rods Length: 120 mm, 60 mm [4.72″, 2.36″] (extendable)

Material: Stainless steel

EasyLink™ Data base software

System requirements Windows® XP, Vista, 7, 8, 10. For the export functions,

Excel 2003 or newer must be installed on the PC.
