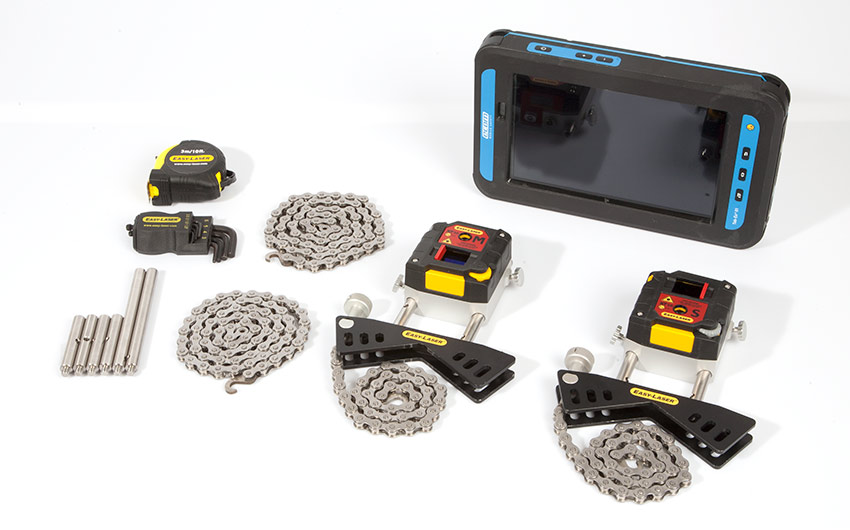

Easy-Laser XT550 – Ex/ATEX Shaft alignment
$8,120.00$10,150.00 (-20%)
Sell New Easy-Laser XT550 – Ex/ATEX Shaft alignment with Manufacture’s Warranty
With XT550 you can carry out the following:
-
Align the machine
-
Check base twist
-
Check bearing play
-
Check soft foot
-
Document and share the results
Shipping costs to be assessed according to the zone.
Easy-Laser XT550 – Ex/ATEX Shaft alignment
Display Unit
- Name
- ecom Tab-Ex® 3
- Type of display/size
- TFT 8″ colour screen
- Operating temperature
- -20–55 °C
- Communication
- Bluetooth® 5.0 Wireless technology, WiFi
- Camera
- 13 Mp with flash (rear), 5 Mp (front)
- Dimensions
- WxHxD: 263x162x26 mm [10.3×6.4×1.0″]
- Weight (without batteries)
- 1100 g [2.42 lbs]
- Operating time
- Up to 11 h continuously
- Operating system
- Android™
- ATEX/UKCA Ex classification
- II 2G Ex db ia IIC T6 Gb IP64
II 2D Ex ia tb IIIC T80°C Db
-20°C ≤ Ta ≤ +55 °C - IECEx classification
- Ex db ia IIC T6 Gb IP64
Ex ia tb IIIC T80°C Db
-20°C ≤ Ta ≤ +55°C - Ex certificate number
- EPS 22 ATEX 1055X, IECEx EPS 22.0014X, EPS 22 UKEX 1055X
Measuring Units
- Name
- XT50-M / XT50-S
- Communication
- BT wireless technology
- Type of detector
- 1 axis TruePSD 20×20 mm [0.79×0.79″]
- Resolution
- 0.001 mm [0.05 mils]
- Measurement accuracy
- ±1µm ±1%
- Measurement range
- Up to 20 m [66 feet]
- Type of laser
- Diode laser
- Laser wavelength
- 630-680 nm
- Laser class
- Safety class 2
- Laser output
- <1 mW
- Electronic inclinometer
- 0.1° resolution
- Environmental protection
- IP class 66 and 67
- Operating temperature
- -10–50 °C
- Storage temperature
- -20–50 °C
- Relative humidity
- 10–95%
- Housing material
- Anodized aluminium + PC/ABS + TPE
- Dimensions
- WxHxD: 76×76.5×50.9 mm [3.0×3.0x2.0″]
- Weight
- 316 g [11.1 oz]
- OLED display
- 128×64 pixels
- Operating time
- Up to 20 h continuously
- Ex classification
- II 2 G Ex ib op is IIC T4 Gb, -10°C ≤ Ta ≤ +50°C
- Ex certificate number
- Presafe 17 ATEX 10552X, IECEx PRE 17.0049X
