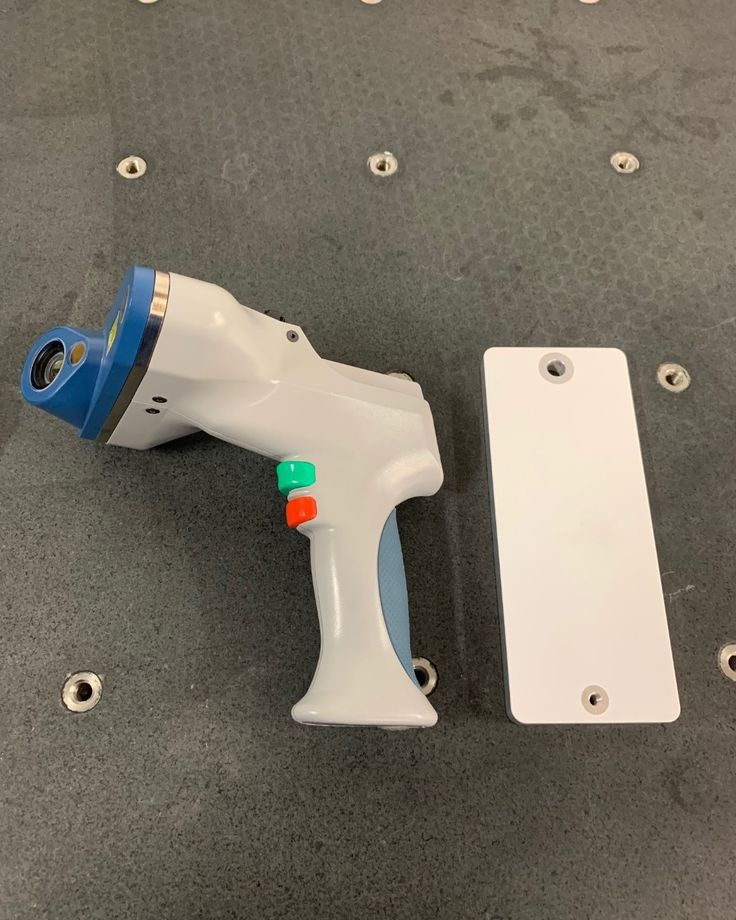

Faro LLP HD – Blue Laser Scanner Head

Specifications:
Accuracy: ± 25μm
Repeatability – 2σ: 25μm
Distance: 115 mm
Depth of field: 115 mm
Effective scan width: 80 – 150 mm (near – far)
Number of points on the line: 2000
Scan rate: 300 lines / second = 600,000 points / sec.
Laser class: 2M
Weight: 485g
Operating temperature range: 10 – 40 ° C
Temperature delta: 3 ° C / 5 minutes
Humidity: 95%, non-condensing
