GE XL Detect plus VideoProbe
$5,400.00$6,750.00 (-20%)
GE XL Detect plus VideoProbe

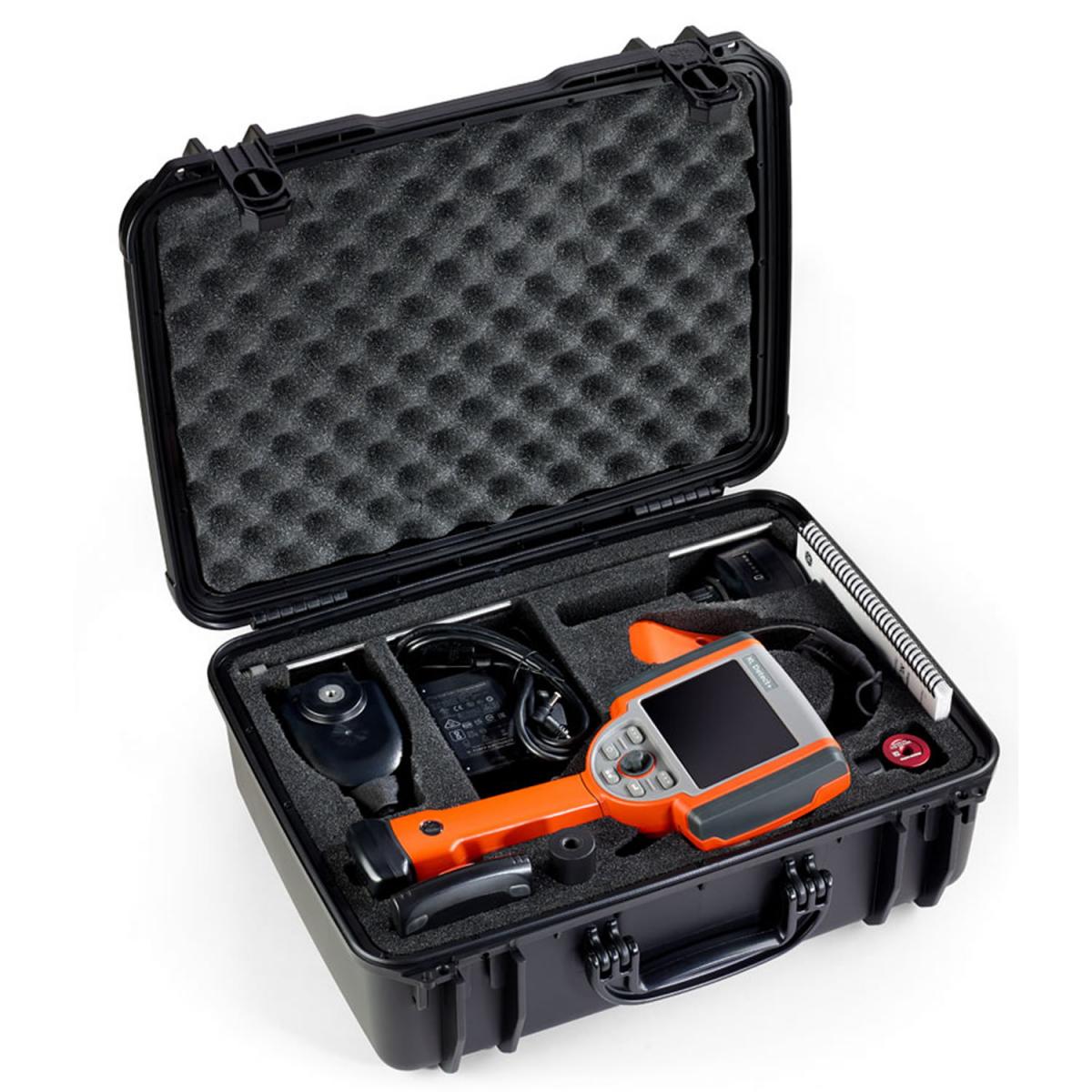

Package includes:
XL Detect+ unit
Documentation thumb drive
Quickstart card
2-hour lithium-ion battery
AC adapter/Battery charger
Optical tip storage case
Storage case
Shipping costs to be assessed according to the zone.
GE XL Detect plus VideoProbe
OPERATING ENVIRONMENT
| Tip Operating Temp: | -25°C to 100°C (-13°F to 212°F) Reduced articulation below 0°C (32°F) |
| System Operating Temp: | -20°C to 46°C (-4°F to 115°F) LCD requires warm-up period below 0°C (32°F) |
| Storage Temperature: | -25°C to 60°C (-13°F to 140°F) |
| Relative Humidity: | 95% max, non-condensing |
| Waterproof: | Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2 O, 33.5 ft of H2 O) |
| Environmental: | XL Detect: Tested to IP55 XL Detect+: Tested to IP65 |
SYSTEM
| Case Dimensions: | 48.8 x 38.6 x 18.5 cm (19.2 x 15.2 x 17.3 in) |
| System Weight: | In Case: XL Detect: 6.50 kg (14.30 lb) XL Detect+: 6.74 kg (14.87 lb) Without Case: XL Detect: 1.77 kg (3.80 lb) XL Detect+: 1.98 kg (4.37 lb) |
| Power (Lithium Ion Battery) | 8.4 V, 38 Wh (2 hour) 8.4 V, 75 Wh (4 hour) |
| Power Supply: | AC Input: 100-240 VAC, 50-60 Hz, 1.5 A Max DC Output: 9.5 V, 6.0 A |
| Construction: | Polycarbonate housings with integrated Versalon™(JP) bumpers |
| Dimensions: | 9.53 x 13.34 x 34.29 cm (3.75 x 5.25 x 13.50 in) |
| LCD Monitor: | XL Detect: Integrated transflective 9.40 cm (3.70 in) active matrix VGA color LCD with XpertBright, 640 x 480 resolution XL Detect+: Integrated 12.7 cm (5.0) active matrix VGA color LCD, Transmissive display. |
| Joystick Control: | 360° All-Way Tip articulation, menu access and navigation |
| Button Set: | Access user functions, measurement and digital functions |
| Audio: | Integrated 2.5 mm headset/microphone jack |
| Internal Memory: | XL Detect: 1 GB Flash memory XL Detect+: 4 GB Flash memory |
| Data I/O Ports: | One USB® 2.0 port |
| Video Port: | VGA Video Out |
| Brightness Control: | Auto and Variable |
| Illumination Type: | White LED |
| Long Exposure: | Via auto and manual mode |
| White Balance: | Factory default or user defined |
