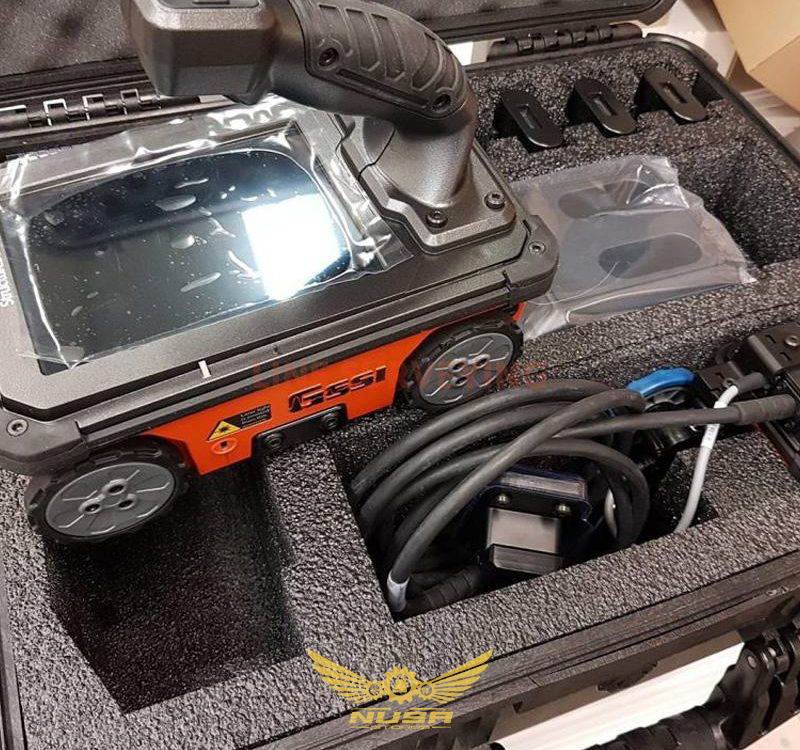

GSSI StructureScan Mini XT GPR
$5,000.00$6,250.00 (-20%)
Sell New GSSI StructureScan Mini XT GPR with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
GSSI StructureScan Mini XT GPR
The GSSI StructureScan Mini XT is a portable ground penetrating radar (GPR) system that performs sophisticated concrete scanning and imaging by means of a built-in 2.7 GHz antenna. The Mini XT penetrates to depths of up to 50cm (20 inches). GSSI StructureScan Mini XT models discover rebar, voids, conduits, post-tension cables, and even service utilities, displaying the precise depth and position of the structural anomaly. A StructureScan Mini XT will also identify structural parameters like concrete cover, pan deck and slab thickness.
| MAX DEPTH | 50 cm (20 inches) |
| ANTENNA FREQUENCY | 2700 MHz |
| WEIGHT | 1.8 kg (4 pounds) |
| STORAGE CAPACITY | 14.5 GB |
| OPTIONAL SOFTWARE | RADAN 7 for StructureScan Mini |
| ACCESSORIES | Palm XT Antenna, LineTrac XT, Accessory Pole |
Includes:
All-in-one Control Unit, 2700 MHz antenna and survey wheel combo
Lithium-ion battery (2)
Dual bay battery charger
Rugged transit case
Quick Start Guide
Sample 3D data collection grid pack
2 year warranty
RADAN 7 Software License for StructureScan Mini
