High Voltage VLF-4022CM 40kV AC VLF Hipot
$2,800.00$3,500.00 (-20%)
Sell New High Voltage VLF-4022CM 40kV AC VLF Hipot with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.

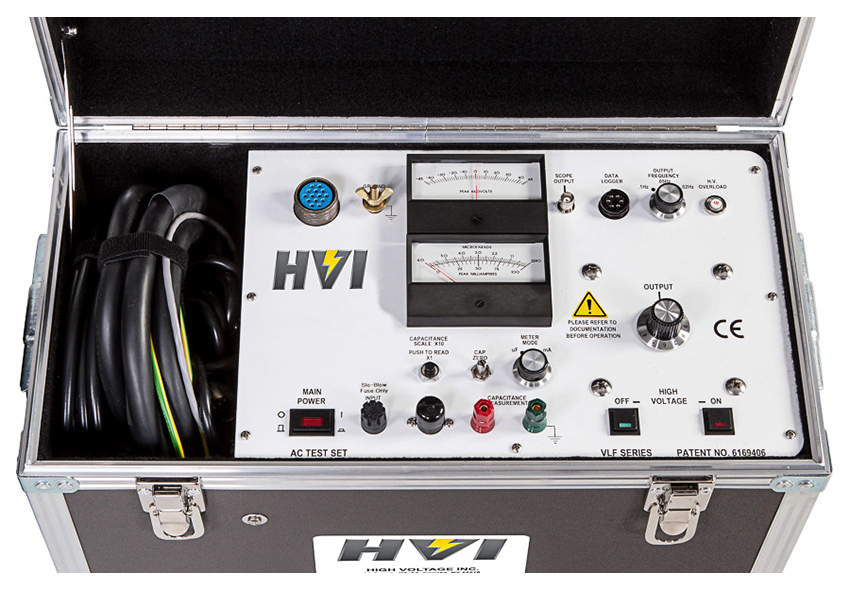

High Voltage VLF-4022CM 40kV AC VLF Hipot
Features
VLF-4022CM(F) has a 44 kVac peak output suitable for testing cables rated up to 25 kV. Its high load capacity can test over 10 miles (16 km) of cable, depending on type. This model includes a charging current and load capacitance meter, and a center zero peak kilovolt output meter. Two-piece construction makes it easy to transport and store.
Specifications
| Input: | 120 V, 60 Hz, 5 A peak, 2.5 A average (F) 230 V, 50/60 Hz, 3 A peak, 2 A average |
|---|---|
| Output: | 0 – 44 kV AC peak, 0.1/0.05/0.02 Hz sinusoidal |
| Duty: | Continuous |
| Load Rating: | 1.1 µF @ 0.1 Hz 2.2 µF @ 0.05 Hz 5.5 µF @ 0.02 Hz |
| Voltmeter: | Center zero -45 – 0 – +45 kV AC peak |
| Current Meter: | 0 – 100 mA peak |
| Load Capacitance Meter: | 0 – 6 µF |
| Output Termination: | Shielded RG/8U output cable – 20 ft. (6 m) Interconnect cable – 10 ft. (3 m) |
| Size & Weight: (W x D x H) |
Controls: 22 x 11.25 x 15.25 in., 50 lb. 559 x 286 x 387 mm, 23 kg HV Tank: 14.5 x 10.5 x 19 in., 72 lb. 368 w x 267 d x 483 mm, 33 kg |
