Leica ScanStation P16 3D Laser Scanner
$10,000.00$12,500.00 (-20%)
Sell Brand Leica ScanStation P16 3D Laser Scanner with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
Leica ScanStation P16 3D Laser Scanner
The Leica ScanStation P16 is the perfect entry into the world of 3D laser scanning, Its attractive price-performance ratio and user friendly interface make it an attractive solution even for the non-surveying user for all short range applications up to 40m.
Specifications:
| System Accuracy | |
| Accuracy of single measurement | Range accuracy: 1.2mm + 10ppm over full range Angular accuracy: 8″ horizontal; 8″ vertical 3D position accuracy: 3mm at 40m |
| Target acquisition | Up to 40m in post-processing software |
| Dual-axis compensator | Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1″, dynamic range ±5′, accuracy 1.5″ |
| Distance Measurement System | |
| Type | Ultra-high speed time-of-flight enhanced by Waveform Digitizing (WFD) technology |
| Wavelength | 1550nm (invisible) / 658nm (visible) |
| Laser class | 1 (in accordance with IEC 60825:2014) |
| Beam divergence | <0.23mrad (FWHM, full angle) |
| Beam diameter at front window | ≤ 3.5mm (FWHM) |
| Range and reflectivity | Up to 40m; 18% reflectivity (minimum range 0.4m) |
| Scan rate | Up to 1’000’000 points per second |
| Range noise | 0.4mm rms at 10m 0.5mm rms at 40m |
| Field-of-View | Horizontal: 360° Vertical: 270° |
| Data storage capacity | 256GB internal solid-state drive (SSD) or external USB device |
| Communications/ Data transfer | Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device |
| Onboard display | Touchscreen control with stylus, full color VGA graphic display (640×480 pixels) |
| Laser plummet | Laser class 1 (IEC 60825:2014) Centering accuracy: 1.5mm at 1.5m Laser dot diameter: 2.5mm at 1.5m Selectable ON/OFF |
| Imaging System | |
| Internal camera | Resolution: Pixel size: Video: White balancing: HDR: |
| External camera | Canon EOS 60D and 70D supported |

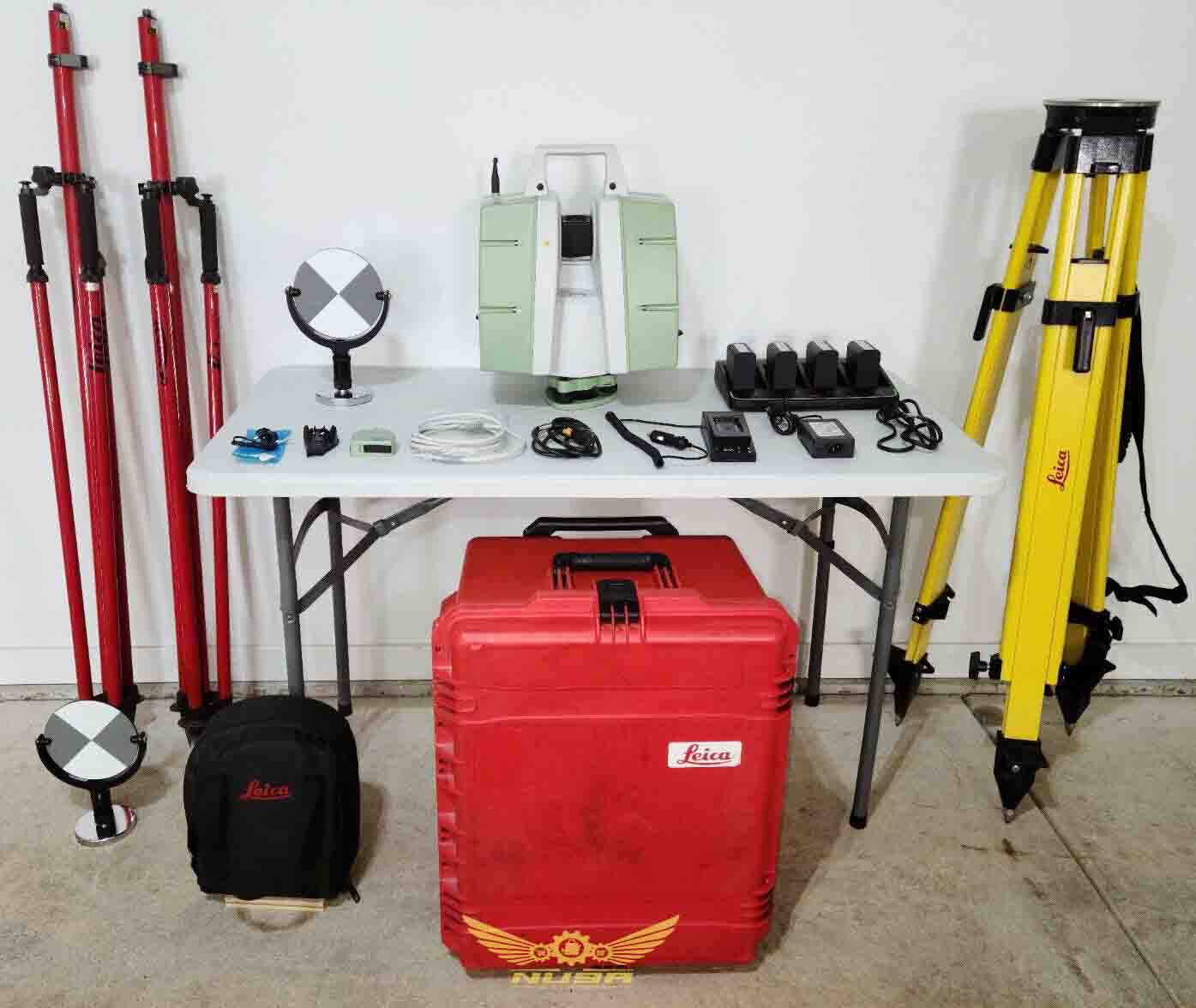

Included :
* Leica ScanStation P16 3D Laser Scanner [ID -L/T*]
* USB Cable
* Battery Pack
* Carrying Case
