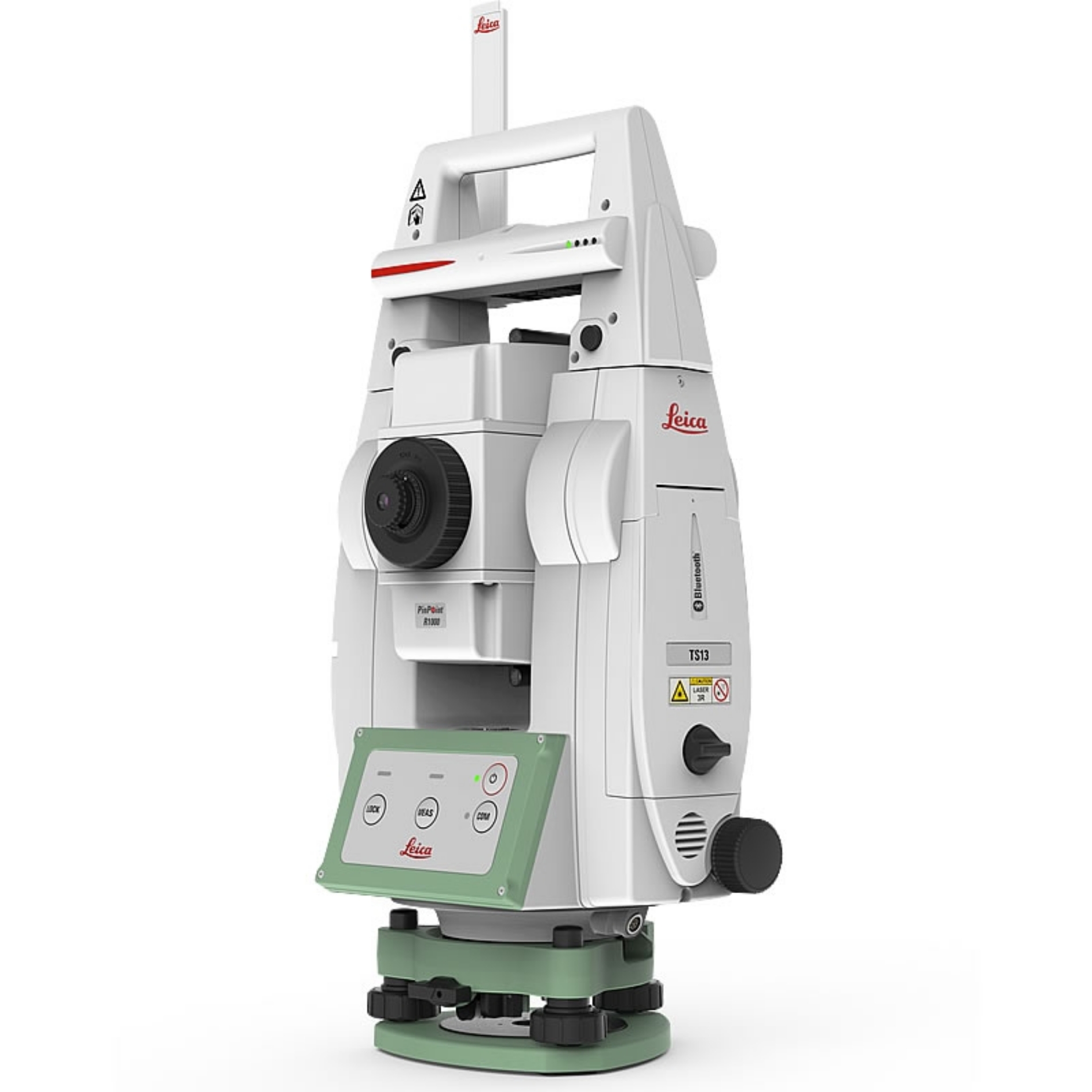

Leica TS13 1″ R1000 Robotic Total Station
$5,400.00$6,750.00 (-20%)
Sell New Leica TS13 1″ R1000 Robotic Total Station with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
Leica TS13 1″ R1000 Robotic Total Station
The Leica TS13 is a mid-range robotic total station. It is a scalable robotic total station, powered by Leica Captivate field software and can be connected to a Leica CS20 field controller. It can be upgraded at any time to benefit from additional functionalities.
Specification:
| Angular Measurement | ||
| Accuracy 1 Hz and V | Absolute, continuous, diametrical | 1” (0.3 mgon), 2” (0.6 mgon), 3” (1 mgon), 5” (1.5 mgon) |
| Distance Measurement | ||
| Range 2 | Prism (GPR1, GPH1P) 3 Non-Prism / Any surface 4 |
1.5 m to 3500 m R500: 1.5 m to >500 m, R1000: 1.5 m to >1000 m |
| Accuracy / Measurement time | Single (prism) 2,5 Single (any surface) 2,4,5,6 |
1 mm + 1.5 ppm / Typically 2.4 s 2 mm + 2 ppm / Typically 3 s |
| Laser dot size | At 50 m | 8 mm x 20 mm |
| Measurement technology | System analyser | Coaxial, visible red laser |
| Automatic Aiming- ATR Automatic | ||
| Target aiming range2 | Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) |
1000 m 800 m |
| Accuracy 1,2 / Measurement time | ATR angle accuracy Hz, V | 1” (0.3 mgon), 2” (0.6 mgon), 3” (1 mgon), 5” (1.5 mgon) / Typically 3-4 s |
| Guide Liht (EGL) | ||
| Working range / Accuracy | 5 – 150 m / Typically 5 cm @ 100 m | |
| General | ||
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™ |
Operating system – Windows® EC7 |
| Power management | Exchangeable Lithium-Ion battery | Operating time 8 – 10 h |
| Field software | Leica Captivate incl. apps | Running on field controller (Leica CS20) |
| Data storage | Internal memory 2 GB SD card 1 GB or 8 GB |
On field controller (Leica CS20) |
| Interfaces | RS232, USB, Bluetooth®, WLAN | |
| Weight | Total station including battery | 5.0 kg |
| Environmental specifications | Working temperature range Dust / Water (IEC 60529) / Humidity |
–20°C to +50°C IP55 / 95%, non-condensing |
| Keyboard | Face I standard | 4 button keyboard with status LEDs |
Package includes:
- Leica TS13 5” R500, total station with ATR
- TOP1, TS13 prism lock option
- TOP2, TS13 robotic option
- GDF311 Tribrach without optical plummet
- GST101 Wooden tripod w/ shoulder strap
- GLS11 reflector pole
- Height meter GHM007 with holder GHT196
- GEB221 Battery int. Li-Ion 7.4V/4400mAh
- GKL311 single Charger Prof 3000
- CS20 3.75G Field Controller
- Leica Captivate Measure & Stakeout CS20
- GEB331 Battery int Li-Ion 11.1V/2800mAh
- MSD1000, SD memory card 1GB
- GVP724 TS Robotic Container
- GRZ4 360° Reflector
- GHT63 Pole clamp for attaching GHT
- GHT66 Holder plate for CS20 controller
- RH17, Bluetooth RadioHandle
- 1-year TS13+CS20 Basic CCP
