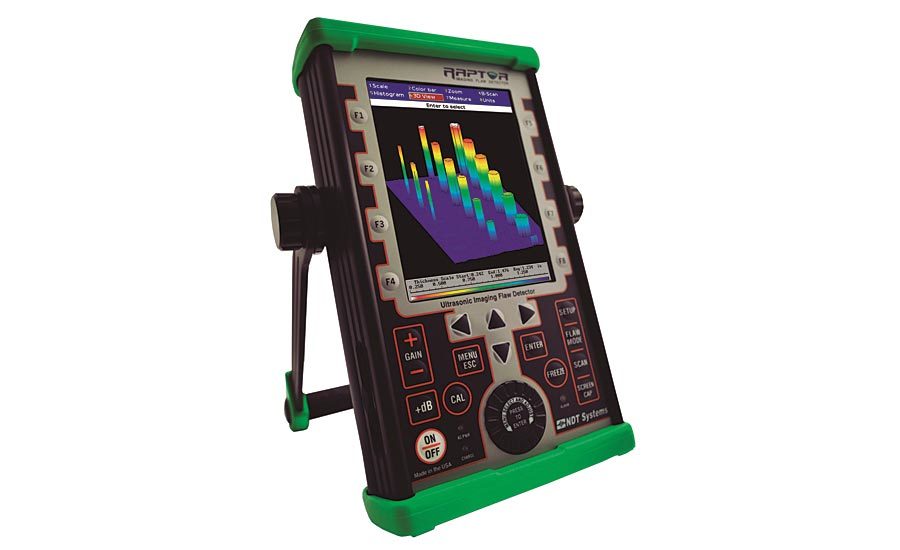

NDT Systems Raptor Precision Ultrasonic Flaw Detector
$2,040.00$2,550.00 (-20%)
Sell New NDT Systems Raptor Precision Ultrasonic Flaw Detector with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
NDT Systems Raptor Precision Ultrasonic Flaw Detector
Specification:
| Dimensions | 5.75 in x 9.5 in x 3.0 in (146 mm x 241 mm x 76 mm) |
| Weight | 5.6 lbs (2.54 kg) |
| Power Source | Li-ion battery (autonomy of 8 hours) or AC power |
| Operating Temperature | 32 F – 122 F (0 °C to 50 °C) |
| Storage Temperature | -4 F – 140 F (-20 °C to 60 °C) |
| Connector Type | Dual BNC |
FEATURES :
Standard package includes instrument, Pelican style shipping case, manual, batteries and AC
Splitscan view- Display A-Trace and B-scan or C-scan simultaneously
C-scan imaging
Imaging view: Encoded B-scan, spreadsheet view, pan & zoom, 3D, histogram
20 point DAC included
Dual A-Trace Splitview
v Time and Encoded B-scan, (scanner optional)
Multiple Gate capability
Peak Echo hold: fixed or unique timed ‘waterfall’ reset
Calibration- Range, Delay, Zero and Velocity
Multiple probe capability
Auto probe recognition or library selectable
Adjustable Gain
Display intensity 10% – 100%
Audible and visual alarm modes, thickness high, low or high/low. Amplitude +/- level
Programmable user setups
Auto 80% gain control
Screen freeze mode, freeze and save
Selectable resolution
Windows based RAPWIN software for imaging analysis
F1-F8 Context sensitive direct access keys
Direct access keys to major menus
