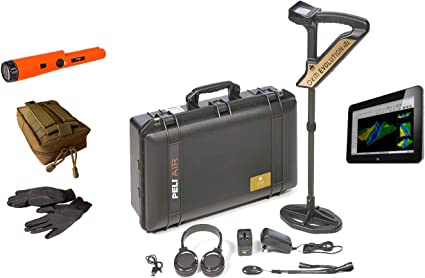

OKM Evolution NTX Metal Detector

OKM Evolution NTX Metal Detector

For some treasure hunters who used only common metal detectors beforehand, the precursor model Evolution has been an outstanding success. You will have a 3d ground scanner and a detector at an affordable price with the new OKM Evolution NTX introductory edition.

Features

• 3D Visualization
• 3D Ground Scan
• Color display / Touchscreen
• GST / EMSR
• Height adjustment
• Inductive search coil
• LED lighting
• Live Sound
• Multilingual operation
• Rechargeable high-capacity battery
• Speaker
• Wireless technology

Technical Specification

Control unit

• Dimensions (H x W x D): 540–810 x 150 x 280 mm
• Weight: approx. 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Technology: GST / EMSR
• Sensor technology / Coil technology: SCMI-15-D / VLF
• Air humidity: 5% – 75%

Data transmission

• Technology: Bluetooth
• Frequency: 2.4 – 2.4835 GHz
• Maximum Transfer Rate: 1 Mbps
• Receiving Sensitivity: –85 dBm
• Maximum Range: approx. 10 m

Computer minimum requirements

• CD-ROM drive: minimum 4x
• Interface (Data transmission): USB
• Free disk space: minimum 50 MB
• Working memory (RAM): minimum  256 MB
• Graphics card: minimum 128 MB, OpenGL-compatible
• Processor: Minimum 1.2 GHz
• Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation.
