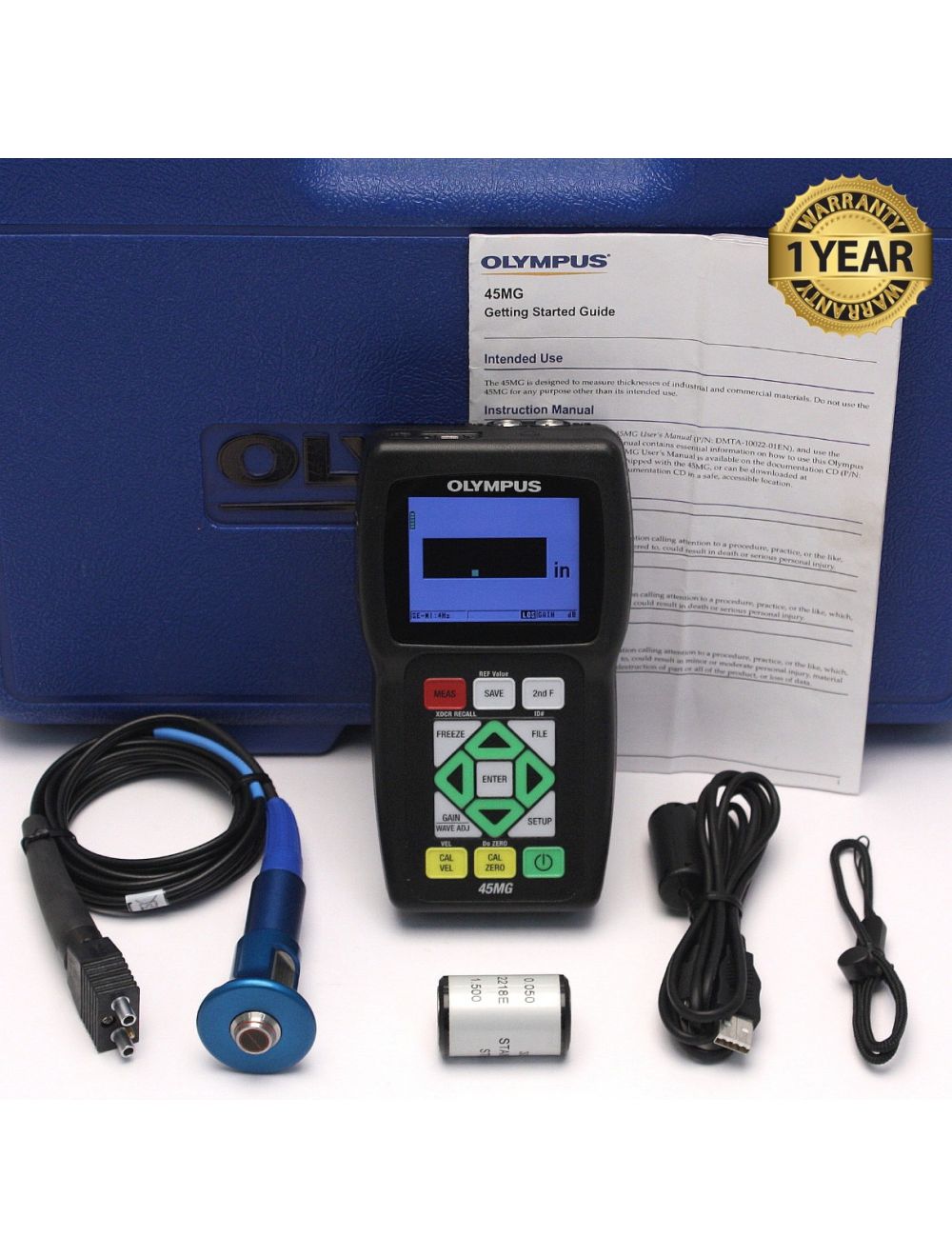

Olympus 45MG Ultrasonic Thickness Gauge
$1,680.00$2,100.00 (-20%)
Sell New Olympus 45MG Ultrasonic Thickness Gauge with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
Olympus 45MG Ultrasonic Thickness Gauge
The Olympus 45MG Ultrasonic Thickness Gage is an advanced ultrasonic thickness gauge packed with standard measurement features and software options. This unique instrument is compatible with the complete range of Olympus dual element and single element thickness gauge transducers, making this innovative instrument an all-in-one solution for virtually every thickness gauge application.
Specification
| Measurements | |
| Dual element transducer measurement mode | Time interval from a precision delay after the excitation pulse to the first echo |
| Echo-to-Echo (optional) | Time interval between two successive back-wall echoes to eliminate paint or coating thickness |
| THRU-COAT® measurement (optional) | Measurement of true metal and coating thicknesses with a single back-wall echo (with D7906-SM, D7906-RM, and D7908 transducers) |
| Single element transducer measurement modes (optional) | Mode 1: Time interval between the excitation pulse and the first back-wall echo Mode 2: Time interval between the delay line echo and the first back-wall echo (with delay or immersion transducers) Mode 3: Time interval between successive back-wall echoes following the first interface echo after the excitation pulse (with delay line or immersion transducers) |
| Thickness range | 0.080 mm to 635 mm (0.003 in. to 25.0 in.) depending on material, transducer, surface conditions temperature, and selected configuration (Full range requires single element option) |
| Material velocity range | 0.508 mm/μs to18.699 mm/μs (0.020 in./μs to 0.7362 in./μs) |
| Resolution (selectable) | Low: 0.1 mm (0.01 in.) Standard: 0.01 mm (0.001 in.) Single Element option: 0.001 mm (0.0001 in.) |
| Transducer frequency range | Standard: 2.25 MHz to 30 MHz (-3 dB) High Penetration (Single Element option): 0.50 MHz to 30 MHz (-3 dB) |
