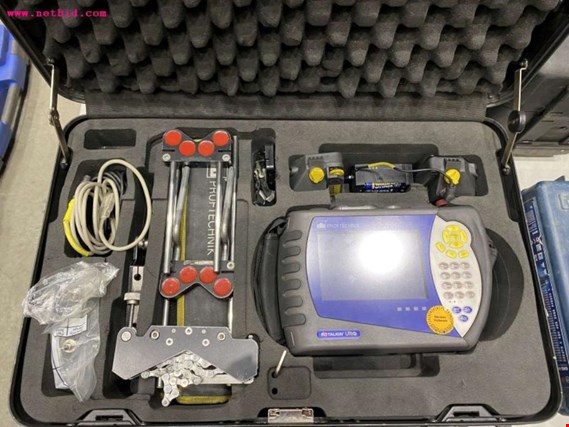

Pruftechnik Rotalign Ultra IS Laser Alignment System

Pruftechnik Rotalign Ultra IS Laser Alignment System

Features at a glance:

– Real time quality by intelliSWEEP
Always precise, accurate and repeatable
– 7-parameter sensor with High Definition PSD, XXL detector
Any amount of misalignment can be easily handled
– Built-in vibration measurement
Measure machine vibration before, during and after alignment, no need for additional hardware
– Environmental vibration monitoring
Accurate shaft alignment under vibrating condition
– Precision built-in inclinometer through MEMS
Used for backlash detection
– Communication to the sensor through the laser beam
sensALIGN™ laser information readily available
– Integrated class 1 Bluetooth
Wireless communication without additional accessories
– Rechargeable battery with latest LiPo technology and intelligent power management
Long runtime without memory effect

Specifications:

CPU : Mavell XScale Processor running at 520 MHz
Memory : 64 MB RAM, 64 MB Internal Flash, 1024 MB Compact Flash Memory
Display : Type: Transmissive (sunlight-readable) backlit TFT color graphic display
Resolution: Full VGA, 640 x 480 pixels;
Dimensions: 145 mm/ 5.7 inch diagonal
Keyboard elements: navigation cursor cross with up, clear and menu keys; Alphanumeric keyboard with dimensions, measure and results hard keys
LED indicators : 4 LEDs for laser status and alignment condition
2 LEDs for wireless communication and battery status
Power supply : Operating time: 25 hours (using Li-Ion rechargeable battery) 12 hours (using disposable batteries) typical use (based upon an operating cycle of 25% measurement, 25% computation and 50% ‘sleep’ mode)
Lithium-Ion rechargeable battery: 7.2 V / 6.0 Ah
Disposable batteries: 6 x 1.5 V IEC LR14 (“C“) [optional]
External interface : 2 x USB host for printer, keyboard or PC communication
1 x USB slave for printer, keyboard or PC communication
RS232 (serial) for receiver
I-Data socket for receiver
Integrated Bluetooth® wireless communication, Class 1, transmitting power 100mW
AC adapter/charger socket
Environmental protection : IP 65 (dustproof and water spray resistant), shockproof
Relative humidity : 10% to 90%
Temperature range : Operation: 0°C to 45°C [32°F to 113°F]
Storage: -20°C to 60°C [-4°F to 140°F]
Dimensions : Approx. 243 x 172 x 61 mm [9 9/16” x 6 3/4” x 2 3/8”]
Weight : 1 kg (without battery)
CE conformity : EC guidelines for electric devices (2004/108 EEC) are fulfilled
