PRUFTECHNIK VIBXPERT II Vibration analysis system & balancing tool
$10,040.00$12,550.00 (-20%)
Sell New PRUFTECHNIK VIBXPERT II Vibration analysis system & balancing tool with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.

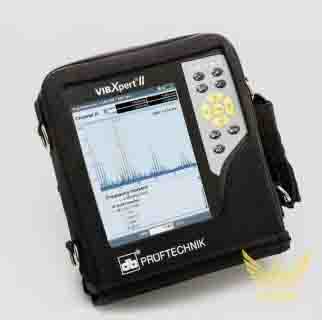

PRUFTECHNIK VIBXPERT II Vibration analysis system & balancing tool
The Pruftechnik VIBXPERT II Vibration Analyzer has field balancing on one and two channels, featuring a frequency range of DC to 51.2 kHz and a dynamic range of 96 dB (measurement) and 136 dB (total). The VIBXPERT II model can operate as a simple data collector for regular inspection and maintenance routines or as an advanced data analyzer for on-site machine analysis and temporary machine condition monitoring.
Specification
| Analog, vibration, 2x | Voltage (AC/DC, ±30 V max.) Current (AC/DC, ±30 mA max.) |
| Input | Frequency range: DC – 51.2 kHz (acceleration from 0.5 Hz) Dynamic range: 96 dB (measurement) / 136 dB (total) Sampling frequency: up to 131 kHz per channel Impedance: 90 kohm, with cable VIB 5.433 Pulse width: <0.1 ms |
| Output | Frequency range: 0 – 500 Hz (0.5 Hz – 40 kHz) Resolution: 0.05 Hz Output impedance: 100 ohm |
| Shock pulse | -10 to 80 dBsv / ±3 dBsv |
| RPM | 10 – 200 000 min-1 / ±0.1% or ± 1 min-1 |
| Temperature, type K | -50 to +1000°C / 1% or ±1°C |
| Weight | 1.1 kg (39 oz) |
| Dimensions (L x W x H) |
186 x 162 x 52 mm ( 7 x 6 x 2 in) |
Included:
– 1 x PRUFTECHNIK VIBXPERT II device as new
– NEW VIB 6.142R sensor + magnetic adapter
– NEW charger with adapters for all countries
– NEW USB cable to connect to a pc
– NEW VIB 5.436 spiral lead to connect to sensor
– NEW 2GB sd memory card
– Certifications, calibrated until 2022
– Omnitrend software
– protective carrying bag + shoulder strap
– Hard 2 wheels case with extendable handle(foamed)
