Pruftechnik VibXpert II Vibration Analyzer Data Collector With Accessories
$5,437.00$7,250.00 (-25%)
Sell Brand New Pruftechnik VibXpert II Vibration Analyzer Data Collector With Accessories
Package Includes
Pruftechnik VibXpert II Main frame
Pruftechnik Hard Transport Case
Pruftechnik Main Frame Soft Protective Case
VIB 3.420 Magnetic
Adapter MS3101A BNC Adapter
Pruftechnik American Style AC to DC Power Supply Charger
Pruftechnik USB Communication Cable VIB 5.330-SUSB
Pruftechnik Spiral Connector Cable For ICP-Type Accelerometers VIB 5.422
Pruftechnik Spiral Connector Cable For Current Line-Drive Accelerometer VIB 5.436
Pruftechnik VibXpert II User Manual
Shipping costs to be assessed according to the zone.

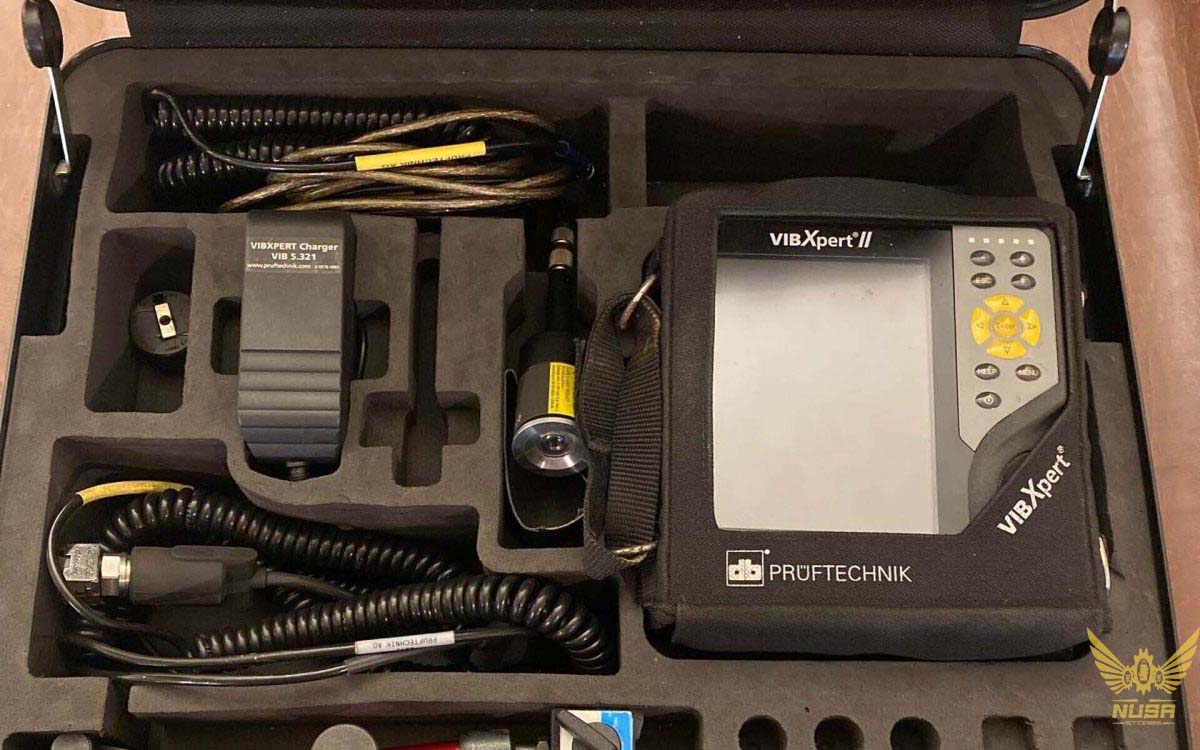

Pruftechnik VibXpert II Vibration Analyzer Data Collector With Accessories
The Pruftechnik VIBXPERT II Vibration Analyzer has field balancing on one and two channels, featuring a frequency range of DC to 51.2 kHz and a dynamic range of 96 dB (measurement) and 136 dB (total). The VIBXPERT II model can operate as a simple data collector for regular inspection and maintenance routines or as an advanced data analyzer for on-site machine analysis and temporary machine condition monitoring.
Specification
| Analog, vibration, 2x | Voltage (AC/DC, ±30 V max.) Current (AC/DC, ±30 mA max.) |
| Input | Frequency range: DC – 51.2 kHz (acceleration from 0.5 Hz) Dynamic range: 96 dB (measurement) / 136 dB (total) Sampling frequency: up to 131 kHz per channel Impedance: 90 kohm, with cable VIB 5.433 Pulse width: <0.1 ms |
| Output | Frequency range: 0 – 500 Hz (0.5 Hz – 40 kHz) Resolution: 0.05 Hz Output impedance: 100 ohm |
| Shock pulse | -10 to 80 dBsv / ±3 dBsv |
| RPM | 10 – 200 000 min-1 / ±0.1% or ± 1 min-1 |
| Temperature, type K | -50 to +1000°C / 1% or ±1°C |
| Weight | 1.1 kg (39 oz) |
| Dimensions (L x W x H) |
186 x 162 x 52 mm ( 7 x 6 x 2 in) |
