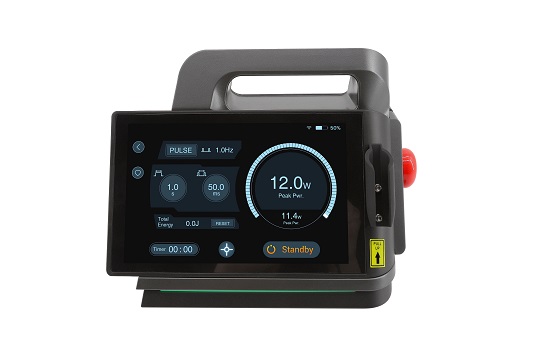

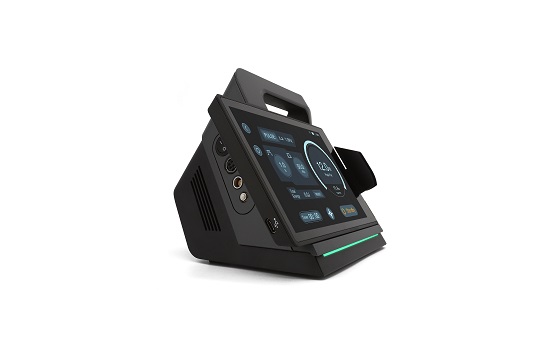

S1 1470nm EVLT Diode Laser System

S1 1470nm EVLT Diode Laser System

S1 1470nm EVLT Diode Laser System Technical Specifications： Wavelength 1470nm Max Power 12W Display/Control 7’HD vivid Touch-Screen Aiming Beam 650nm5mW Fiber Connection 400um and 600um with standard SMA905 connector Operating Modes Continuous Wave(CW)/Pulsed Power Supply 18VDC 5A Battery Capacity 3350mAh Weight(without case) ≤2KG NW Dimensions(L*W*H) 26cm(L)*12.5cm(W)*20cm(H) Optimal Clinical Configuration： Superior cellular water absorption, gives 1470nm wavelength advanced vein ablation results at relatively low power settings, thus reducing thermal damage to surrounding tissues.Significant reduction of postoperative pain and side effects help to reach higher patient satisfaction that promote 1470nm lasers as the universal alternative to conventional 810/980nm lasers.Additionally, it has a very good effect on blood (no risk of bleeding). Confirmed by clinical statistics, 1470nm’s recommended power ranges from 5 to 10 watts.At settings of less than 12 Watts, tissue necrosis and damage can be controlled,therefore 1470nm 12Watts is a safer and cheaper configuration. Quality and Safety： S1 is exquisite and compact in appearance,which stands out from the medical laser design industry. Thanks to its elegant metallic body,super-fast cooling system and highly integrated modular design,S1 can deliver up to 12W stable and continuous laser energy. Technology makes it possible. Sustainable Value： As original manufacturer of medical lasers and laser accessories,the price will be expected. Longest warranty policy: 5 years for laser module, 3 years for main device. OEM cooperation is possible. Rapid and Easy Set-up: Equipped with the ultra-fast response touch screen, S1 allows surgeons to select very efficiently, intuitively and effortlessly with a wide field of vision. Individual treatment data can be stored,the surgeon preset is ready,which contributes to quick and easy selection of treatment parameters. We want surgeons to focus on every treatment without being interrupted by complicated software.

Technical Specifications：

Wavelength          1470nm

Max Power           12W

Display/Control       7’HD vivid Touch-Screen

Aiming Beam         650nm<5mW

Fiber Connection      400um and 600um with standard SMA905 connector

Operating Modes      Continuous Wave(CW)/Pulsed

Power Supply         18VDC 5A

Battery Capacity       3350mAh

Weight(without case)   ≤2KG NW

Dimensions(L*W*H)    26cm(L)*12.5cm(W)*20cm(H)

The laser complies with the following standards：
IEC 60601-1:2005 +A1:2012
IEC 60601-1-2:2014
IEC 60601-2-22:2012
IEC 60825-1:2014

Optimal Clinical Configuration：

Superior cellular water absorption, gives 1470nm wavelength advanced vein-ablation results at relatively low power settings, thus reducing thermal damage to surrounding tissues. Significant reduction of postoperative pain and side effects help to reach higher patient satisfaction that promotes 1470nm lasers as the universal alternative to conventional 810/980nm lasers. Additionally, it has a very good effect on blood (no risk of bleeding).

Confirmed by clinical statistics, 1470nm’s recommended power ranges from 5 to 10 watts. At settings of less than 12 Watts, tissue necrosis and damage can be controlled, therefore 1470nm 12Watts is a safer and cheaper configuration.
