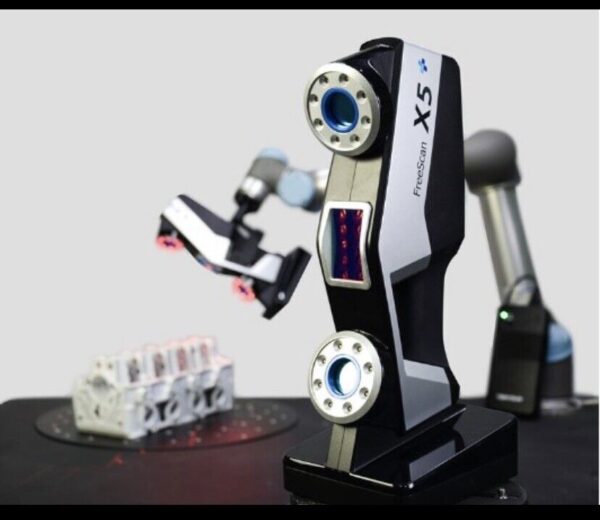

FreeScan X5 from SHINING 3D is a portable laser scanner with a 300 x 250 mm scanning field. It is characterized by high accuracy and stability. The FreeScan series are metrological scanners, their accuracy is determined on the basis of the restrictive German standard VDI / VDE 2634 and is confirmed by certified measuring laboratories.

belongs to the SHINING3D series of industrial 3D laser scanners. SHINING3D 3D scanner is small in size and weighs only 0.95 kg. This makes it possible to use it to scan various objects. Laser technology allows you to scan objects with a metallic, reflective surface.

SHINING3D FreeScan X5 3D scanner uses laser technology for scanning, which makes it characterized by high accuracy and quality of mapping real objects to the form of digital 3D models. They have no restrictions related to the color or texture of the scanned object as it is the case with scanners working in structured light technology.

Shining 3D Freescan X5 Laser Scanners

Unlimited 3D scanning

SHINING3D FreeScan X5 3D scanner has the ability to adapt the scan settings to the room in which the scanning process takes place. You can scan in an internal, external and other complex environment.

Mobility and ease of use

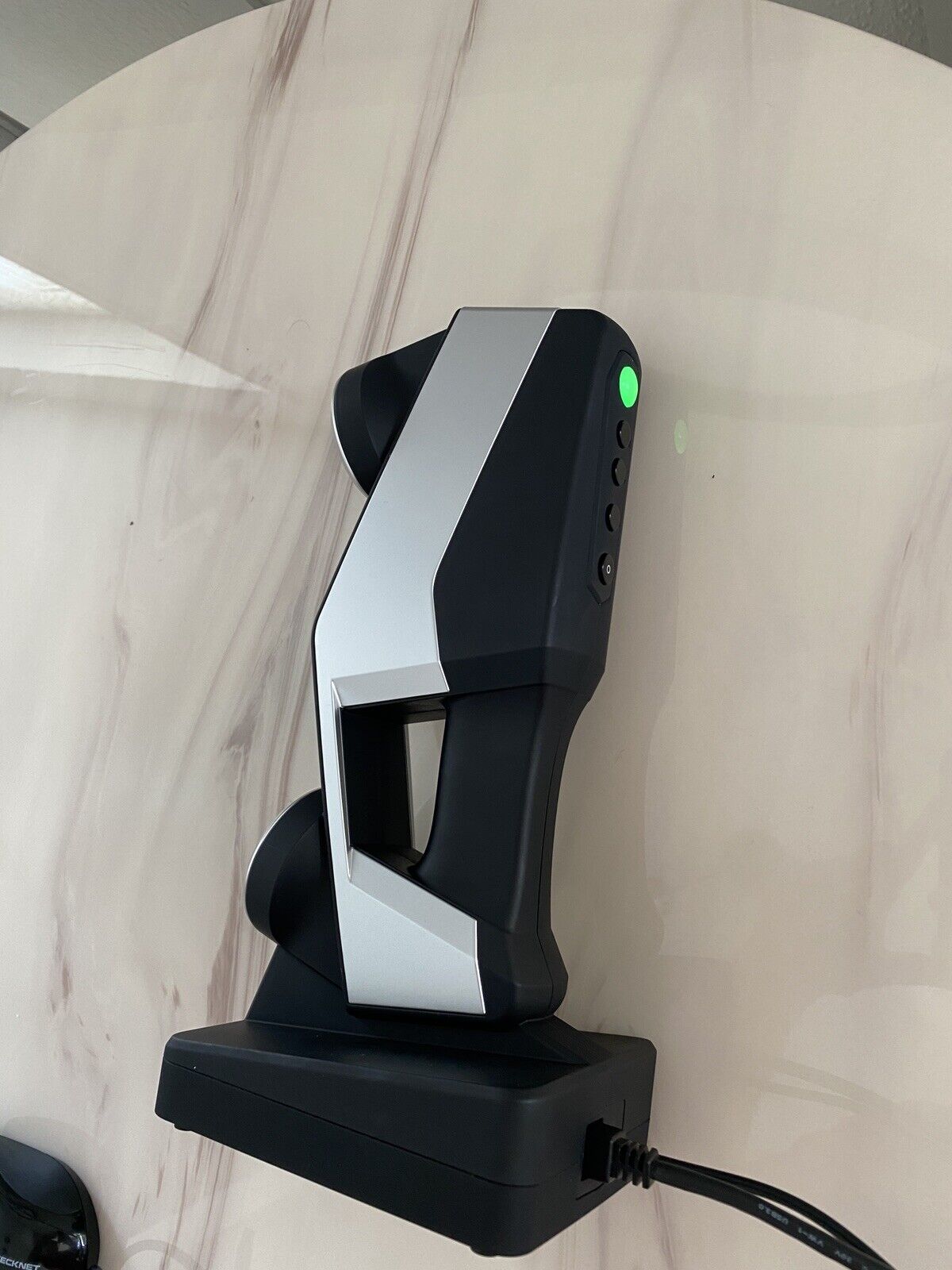

FreeScan X5 is a hand-held scanner weighing just 0.95 kg. It has a flexible and convenient scanning mode. It guarantees high accuracy and stability. It allows you to maximize your scanning performance, which allows you to achieve excellent results.

The use of SHINING3D FreeScan X5 3D scanner laser technology ensures perfect results when scanning indoors and outdoors. Laser technology also makes it possible to scan hard-to-reach places – including holes, which are often inaccessible to structured light scanners.

High compatibility

SHINING3D FreeScan X5 3D scanner is compatible with 3D DigiMetric SHINING photogrammetric systems that are used to measure large details. Photogrammetry is a measurement method in which the 3D coordinates of reference points are obtained by processing photos from a digital camera. The DigiMetric system is used to calculate the 3D coordinate values ​​of markers stuck to the surface of an object, which are then applied to a fixed coordinate system, which is then used to precisely combine large-size scans. The use of the DigiMetric system increases the precision of scanning large objects and significantly speeds up the entire digitization process.

The FreeScan X5 is a portable 3D scanner designed by Shining 3D, a manufacturer based in China.

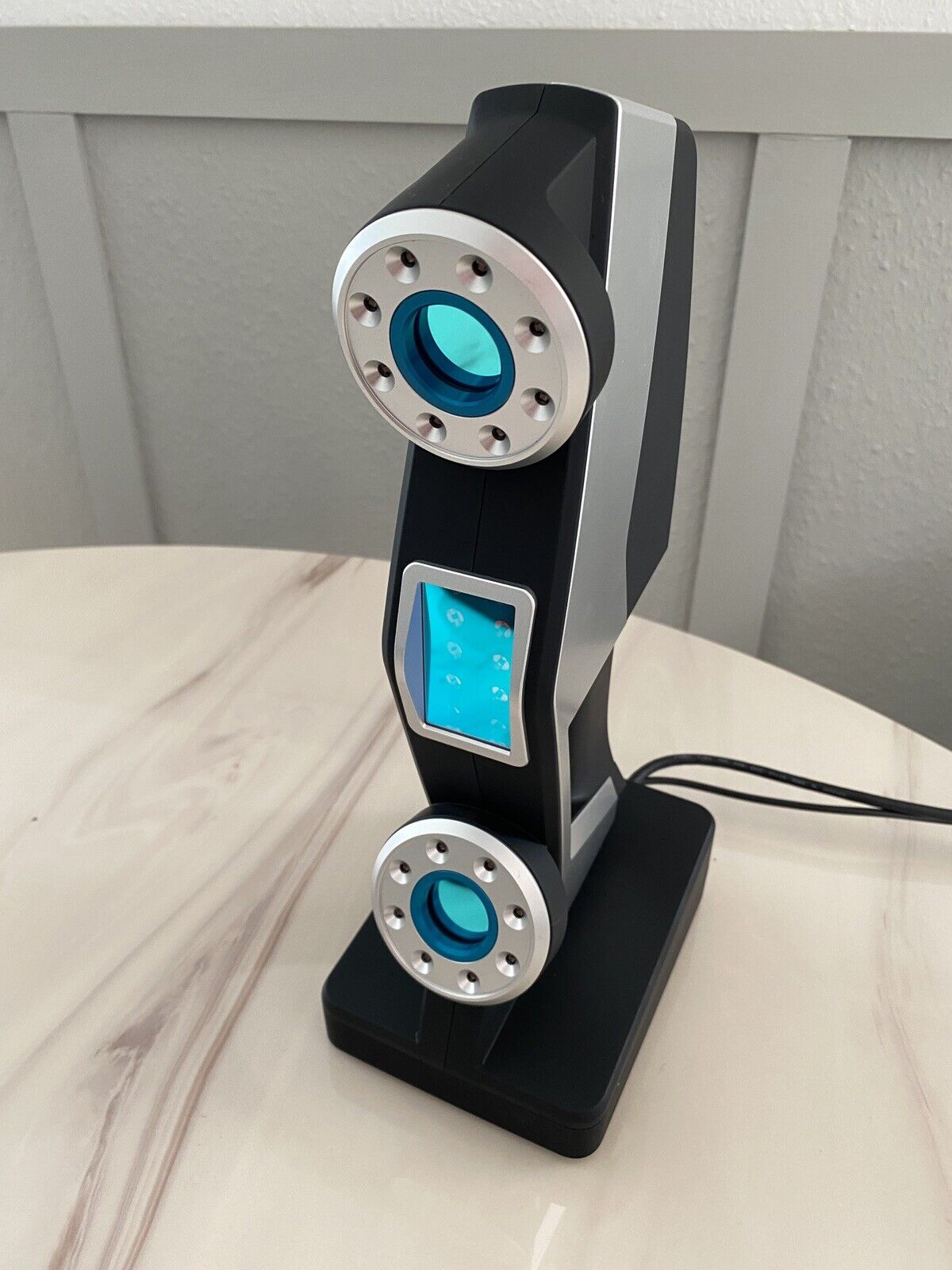

The Shining 3D FreeScan X5 is light and portable with a weight of only 0.8 kg. It replaces the FreeScan X3 and offers a higher performance; being faster and more precise. The Shining 3D FreeScan X5 uses a line laser array (10 line laser array, Class II eye safe) and high speed 3D scan technology. This professional portable 3D scanner is suited for uses cases without external positioning system, tripod or fixture.

Shining 3D FreeScan X5 features
Light body and easy operation: Light and handy (0.8 kg), narrow space operation accessible. The Shining 3D FreeScan X5 can operate without any external clamping positioning.
Large measurement space: Almost unlimited 3D scanning size, not affected by size, texture and color of the object.
High accuracy, high speed: Accuracy up to 0.03 mm, measured under the German VDI/VDE 2634 standard. The 3D scanning speed can reach up to 350000 points/s.
High compatibility: Compatible with 3D photogrammetric systems, which allows the measuring of very large parts (0.1 – 6 m, extendable).
Interface with CAD packages: The Shining 3D FreeScan X5 is compatible with the most renowned CAD packages; including 3D System (Geomagic Solutions), InnovMetric Software (PolyWork), Dassault Systemes (CATIA V5 & SolidWorks), PTC (Pro/ENGINEER), Siemens (NX Solid Edge), Autodesk (Inventor Alias, 3ds Max, Maya, Softimage).
Shining 3D FreeScan X5 applications
The Shining 3D FreeScan X5 is capable of performing for a wide variety of different industries, including education, digital jewelry, digital hearing aids, reverse engineering, 3D inspection and 3D printing and rapid prototyping.
