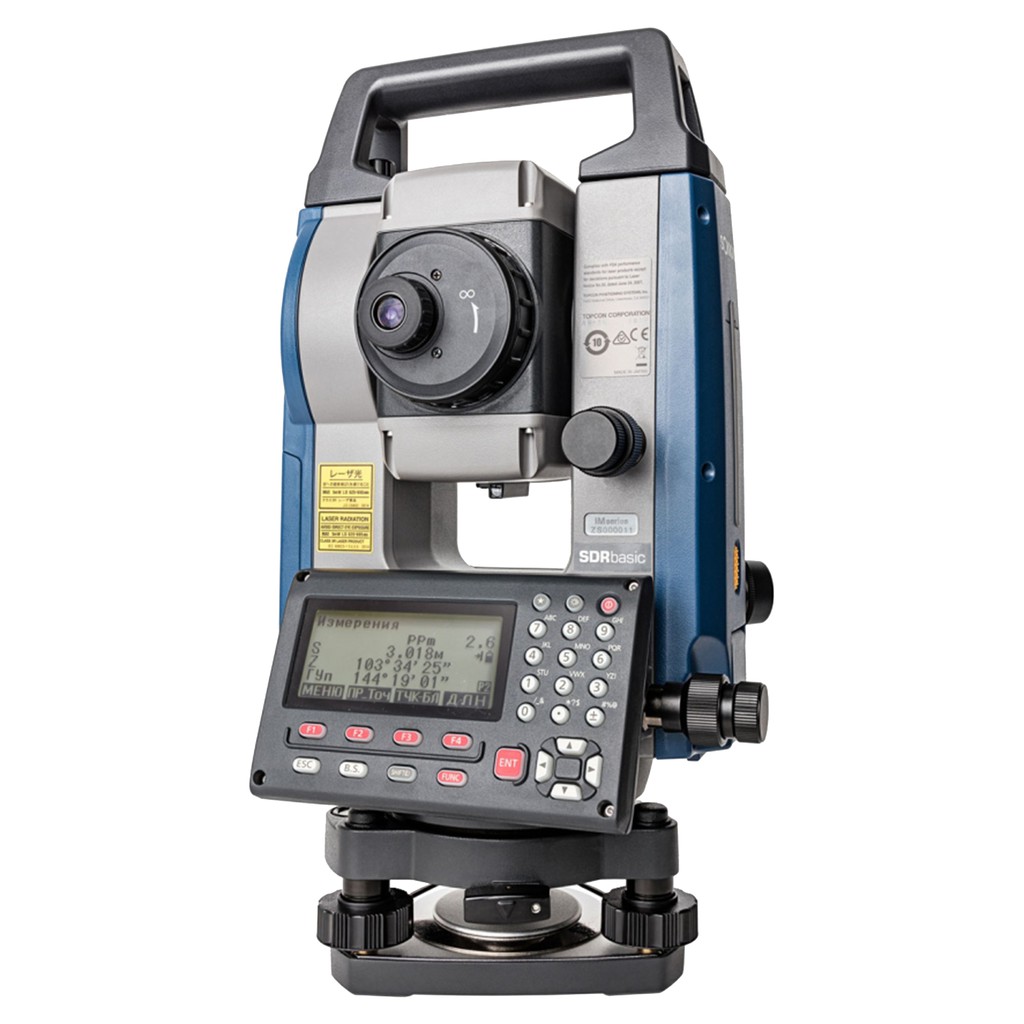

Sokkia iM-105 5″ Total Station
$2,660.00$3,325.00 (-20%)
Sell New Sokkia iM-105 5″ Total Station with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
Sokkia iM-105 5″ Total Station
Sokkia iM-105 5” sale includes:
- Sokkia iM-105 5” Reflectorless Total Station
- Lens cap and hood
- Tool pouch
- Precision screwdriver
- Lens brush
- 2 x Hexagonal wrench
- Cleaning cloth
- Power cable Battery
- BDC70 Battery charger, CDC68A
- CD-ROM manual
- Laser caution sign-board
- Carrying case with strap
- User manual
Features:
- Fast, accurate and powerful EDM
- Integrated Blueooth technology – no external antenna necessary for connectivity with the controller
- Dual axis compensation
- Waterproof IP66 rating
- Up to 28 hours of battery life in Eco mode
Sokkia iM-100 Series Reflectorless Total Station is available in four different accuracies as follows:
- 1018763-18: Sokkia iM-101 1 Second Reflectorless Total Station
- 1021013-01: Sokkia iM-102 2 Second Reflectorless Total Station
- 1021013-03: Sokkia iM-103 3 Second Reflectorless Total Station
- 1018763-07: Sokkia iM-105 5 Second Reflectorless Total Station
| Model | Sokkia iM-105 | |||
| Telescope | ||||
| Magnification / Resolving power | 30x / 2.5” | |||
| Length | 171 mm (6.7 in.) | |||
| Objective aperture | 45 mm (1.8 in.) (48 mm (1.9 in.) for EDM) | |||
| Angle Measurement | ||||
| Display Resolution | 1” / 5” | |||
| Accuracy (ISO 17123-3:2001) | 5” | |||
| Memory | ||||
| Internal memory | Approx. 50,000 points | |||
| Plug-in memory device | USB flash memory (max. 32GB) | |||
| General | ||||
| Dust/Water Rating | IP66 (IEC 60529:2001) | |||
| Size with handle (w x d x h) | Control panel on both faces: 183 x 181 x 348 mm Control panel single face: 183 x 174 x 348 mm |
|||
