Thermo Scientific TVA-1000B Toxic Vapor Analyzer For Sale
$2,100.00$4,200.00 (-50%)
Thermo Scientific Environmental Foxboro Scientific TVA-1000 Toxic Vapor Analyzer TVA1000B
Features:
- Simultaneous FID/PID or Single FID detector(s)
- U.S. Environmental Protection Agency method 21 compliant
- Detects organic and inorganic compounds
Shipping costs to be assessed according to the zone.

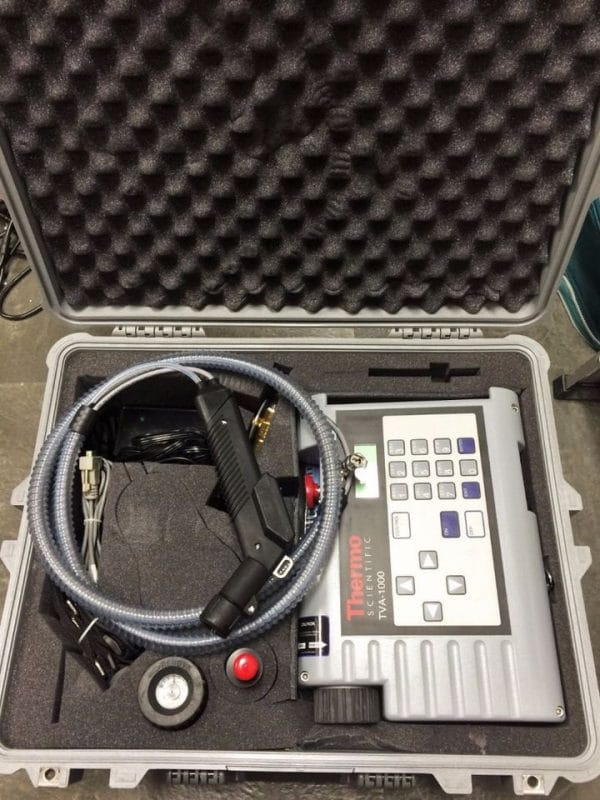

Thermo Scientific TVA-1000B Toxic Vapor Analyzer
TVA 1000B is a portable and lightweight dual PID/FID toxic vaporanalyzer is known for exceptional performance in fugitive emissions monitoring.The TVA1000B toxic vapor analyzer reliably monitors and logs organic and inorganic vapors simultaneously in a wide range of applications including emergency response, underground storage
tank investigations, gas leak detection, and hazardous waste site evaluation. The device provides
fast, accurate readings in accordance with EPA Method 21 for monitoring fugitive emissions.
Specifications:
| Safety Certifications | FM (Class 1, Div. 1, Groups A,B,C & D Hazardous Location, Temp. Class T4) |
| Datalogging | Onboard |
| Probe Display | Bar graph & 4-digit LCD (standard); 6 lines x 20 characters (enhanced) |
| Dynamic Range | 0.5-2,000 ppm (PID) isobutylene; 0.5-50,000 ppm (FID) methane |
| Linear Range | 0.5-500 ppm (PID) isobutylene; 0.5-10,000 ppm (FID) methane |
| Response Time | 3.5 seconds |
| Minimum Detectable Limit | 100 ppb benzene (PID); 300 ppb hexane (FID) (laboratory conditions) |
| Alarms | Low, high, STEL |
| Sample Flow Rate | 1000 cc (normal) |
| Power | Rechargeable NiCd battery |
| Logging Capacity | 850-27,000 points mode specific |
| Fuel | None required (PID); 99.99% hydrogen (FID) |
| Portable Operation Time | 8 hours (with reference operating conditions) |
| Approximate Mass | 5.8 kg (13 pounds) |
| Nominal Dimensions | 13.5 x 10.3 x 3.2 inches (343 x 262 x 81 mm) |
| Analog Output | 0-2 Vdc (non-calibrated) |
| Repeatability | +/- 1% (PID); +/- 2% (FID) |
| Accuracy | FID= 25% of reading or 2.5ppm, whichever is greater from 1.0 to 10000ppm; PID= 25% of reading or 2.5ppm. whichever is greater from 0.5 to 500ppm |
| Auto Ranging | Yes |
| Diagnostics | Yes |
