Topcon LN-100W Layout Navigator

Topcon LN-100W Layout Navigator

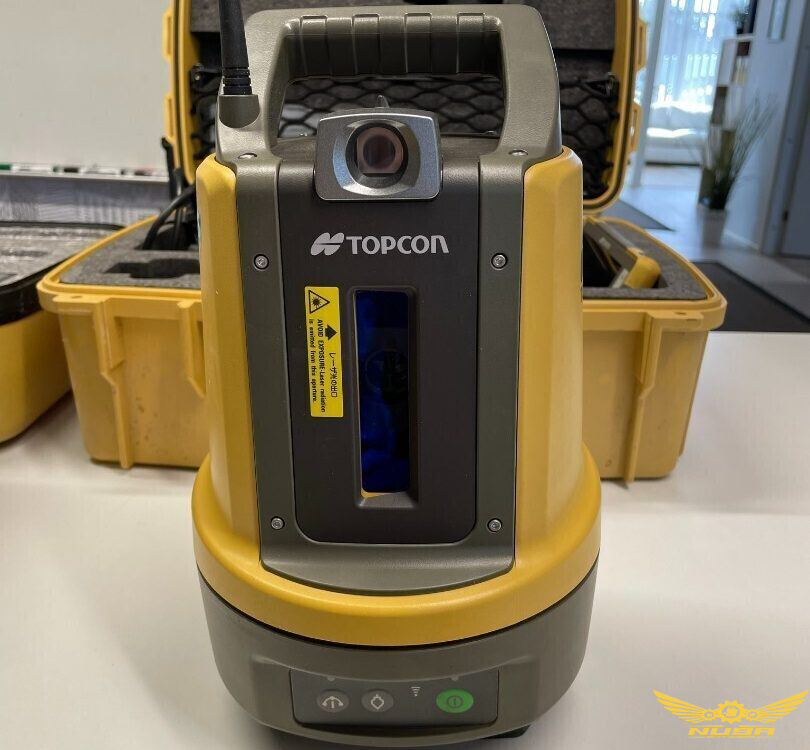

The Layout Navigator (LN-100) is a revolutionary layout tool design based on simplicity.  The LN-100 provides a jobsite 3D positioning for all your construction layout needs.  Topcon has blended the technology used for self leveling lasers and robotic total stations into LN-100.  The perfect tool for layout.

The setup of the instrument is so simple that the real innovation is in the user interface.  A colorful touch screen tablet controller that can display simple point layout or large CAD drawings, is in your hand anywhere on the project site.  Simply see the design point or line that needs to be staked out, touch it, and the LN-100 immediately points to the location.  The LN-100 locks onto the prism and instructs the user which way to move to layout the new design point.

Layout anything on the job site within +/-3mm.  Walls, ceilings, and floor location layout can all be mastered with the LN-100.

Spesifications
Accuracy: 5 arc seconds +/- 1.5 mm at 50m (1/8 in. at 164 ft.)
Guide Light: Range: ~100m  V : ±12°, H : 8°
Communications
Wi-Fi Wireless 802.11n/b/g
Bluetooth Class 1 (LN-100W)
Dust/Water Protection: IP65
Dimensions 185 x 196 x 295mm
Weight* ~ 4kg (8.8 lbs.)
EDM Range: 328 ft (100 m)
Auto Levelling: Self-Level + 3°
Plummet: Integrated Laser Plummet
Hi Alert: Alerts user if disturbed
Posotioning Accuracy: + 3 mm
Battery: 5 hours from 1 battery in typical working conditions

Brohure>>>
