Trimble RTS 773 Robotic Total Station

Trimble RTS 773 Robotic Total Station

The Trimble RTS 773 includes Trimble VISION, an integrated camera in the robotic total station gives you the power to see everything the instrument sees without a trip back to the tripod. This is performed remotely via the Trimble Tablet and Trimble Field Link software.

Key Features:

• Trimble VISION with an integrated digital camera
• Robotic communication link – 2.4 GHz radio
• Robotic radio communication range – 500-700 m (1,640 – 2,297 ft.)
• Measuring range (single prism) – 2,500 m (8,202 ft.)
• Distance measurement accuracy (prism mode) – +/-2 mm + 2 ppm (0.01 ft. + 2 ppm)
• Reflector-less DR measuring – 120 m
• Angle accuracy – horizontal: 3″ (1.0 mgon), vertical 2″ (0.6 mgon)

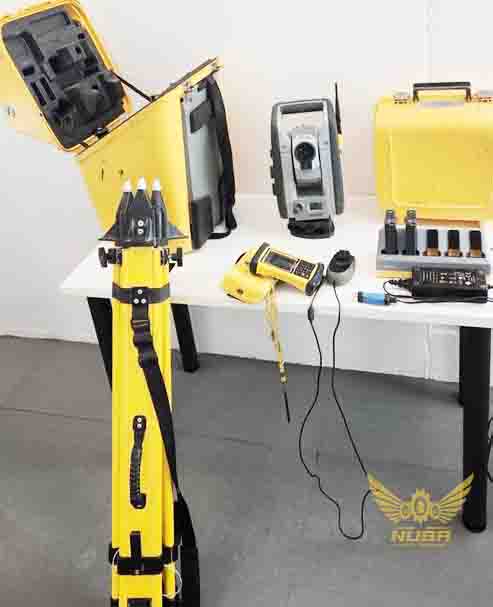

Includes:
Trimble RTS 773 Robotic Total Station
Trimble MultiTrack Prism (MT1000) with prism pole and bipod, inc 7.4V Li-Ion battery
Trimble Kenai Tablet with (Global Radio) Kit
Two batteries with charger
Multiple Antennas
Trimble Field Tablet for MEP
Tripod – Dual Clamp Tri-Max with Trimble Logos
Trimble Bipod for Inverted Layout Rod
Hard Case for the Total Station and prism
Various other cables, power supplies, and accessories.

The Trimble RTS 773 Specs >>>
