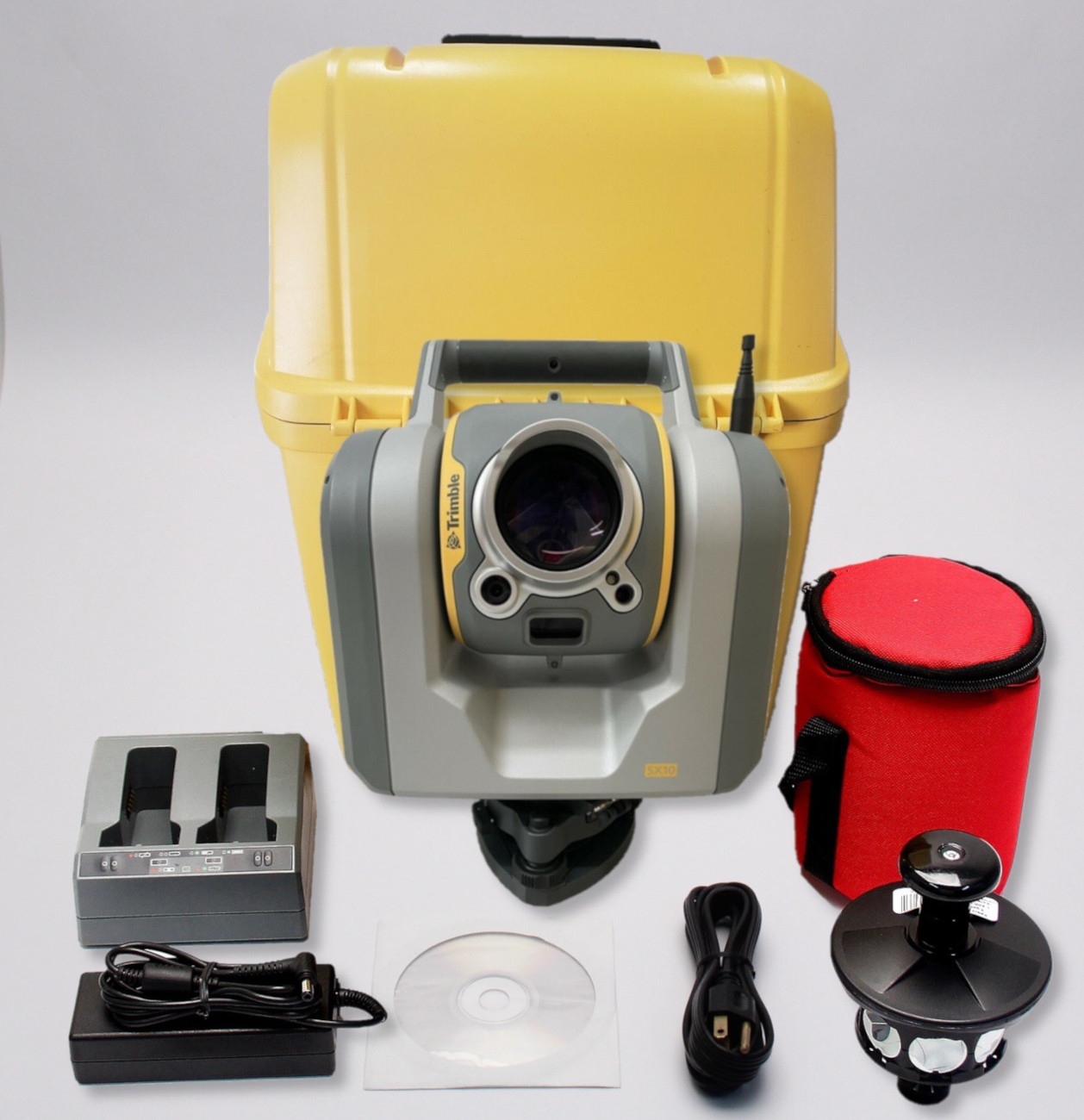

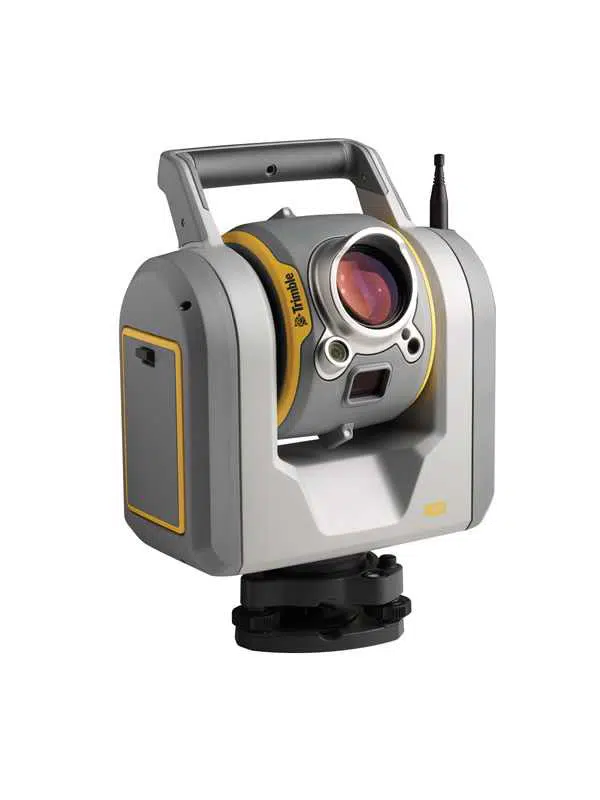

Trimble SX10 3D Scanner and Total Station

Trimble SX10 3D Scanner

Trimble SX10 combines three traditional instruments into one! Now you can survey, capture images, and perform high-speed 3D scans with one piece of equipment. Loaded with Trimble’s Lightning 3DM technology the SX10 has scanning ranges up to 600 meters and can capture up to 26,600 points per second.

Features

• Combines surveying, imaging, and high-speed 3D scanning in one revolutionary solution.
• Trimble’s high accuracy Lightning 3DM technology provides a scanning range up to 600 m and the smallest spot size in the industry-a mere 14 mm at 100 m.
• Utilizes Trimble Lightning scanning technology to scan up to 26,600 points per second captures a full-dome scan in as little as 12 minutes.
• Improved Trimble VISION™ technology allows for fast and easy capture of high-resolution site imagery.
• Complete integration with familiar workflows of Trimble Access and Trimble Business Center Software.

Applications

• Topographic Survey/General Surveys (Boundary/Land Title Surveys)
• Roadway/Corridor Surveys (Roadway design and Topo)
• Volumetric Surveys (Stockpile volumes)
• Infrastructure Surveys (Civil Infrastructure As-Builts)
• Building As-Built and Design Surveys
• Utility Design Survey
• Power Line Inspection/Clearance
• Forensics/Crash Scene Investigation
• Mine/Quarry Survey
• Tank Calibration/Inspection
• Dimensional Control
