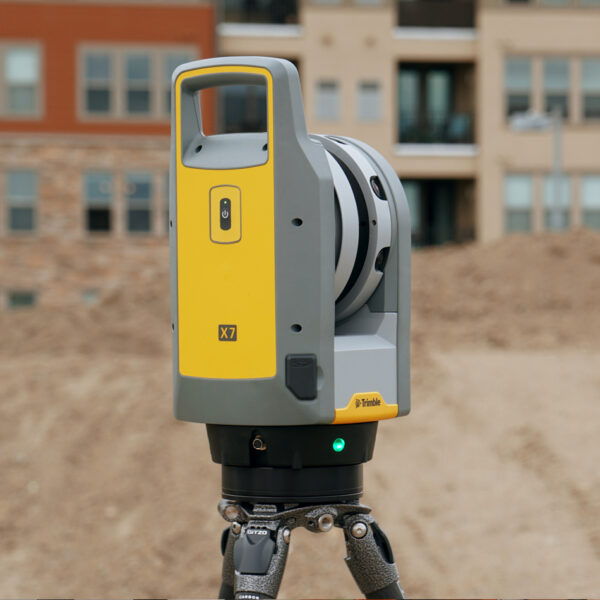

Trimble X7 3D Laser Scanner
$12,400.00$15,500.00 (-20%)
Sell New Trimble X7 3D Laser Scanner with Manufacture’s Warranty
Shipping costs to be assessed according to the zone.
Trimble X7 3D Laser Scanner
Features:
1. One-person operation
2. Ultra-Fast – True Million Points a Second scanner
3. More than double your scan time vs comparable scanners
4. Long-Range Scanning 330 meters.
5. Very Clean Data / Low Noise
6. SD Data storage
7. Easy-to-follow user interface
8. Reduced labor costs vs typical architectural survey
9. Shortens learning curve and faster operation
10. Catch errors before they are an issue
Specification:
| Scan Speed | Up to 500 kHz |
| Scan Range | 0.6 m–80 m |
| Range Noise | < 2.5 mm @ 30 m |
| 3D Point Accuracy | 3.5 mm @20 m |
| Scan Time | 2-7 minutes |
| Imaging | 3 coaxial, calibrated 10MP cameras |
| Image Acquisition Time | 1-2 min Standard (2-6min HDR) |
| Interface | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device |
| Dual Axis Compensator | Accuracy <3″, Range ±10° |
| Ingress Protection | IP55 |
| Laser Class | Laser class 1, eye safe in accordance with IEC EN60825-1 |
